Images that explain what all the jargon actually means.

Lock Types Comparison

What’s the Difference?

Lock TypeImageWhere UsedNuki Compatible?
US DeadboltNuki USUSA, Canada✅ Smart Lock (US)
Euro CylinderCylinder TypesEurope, SEA✅ Smart Lock Pro
Lockwood 001 Rim LockLockwoodAustralia❌ NOT COMPATIBLE

The Australian Problem: Lockwood 001

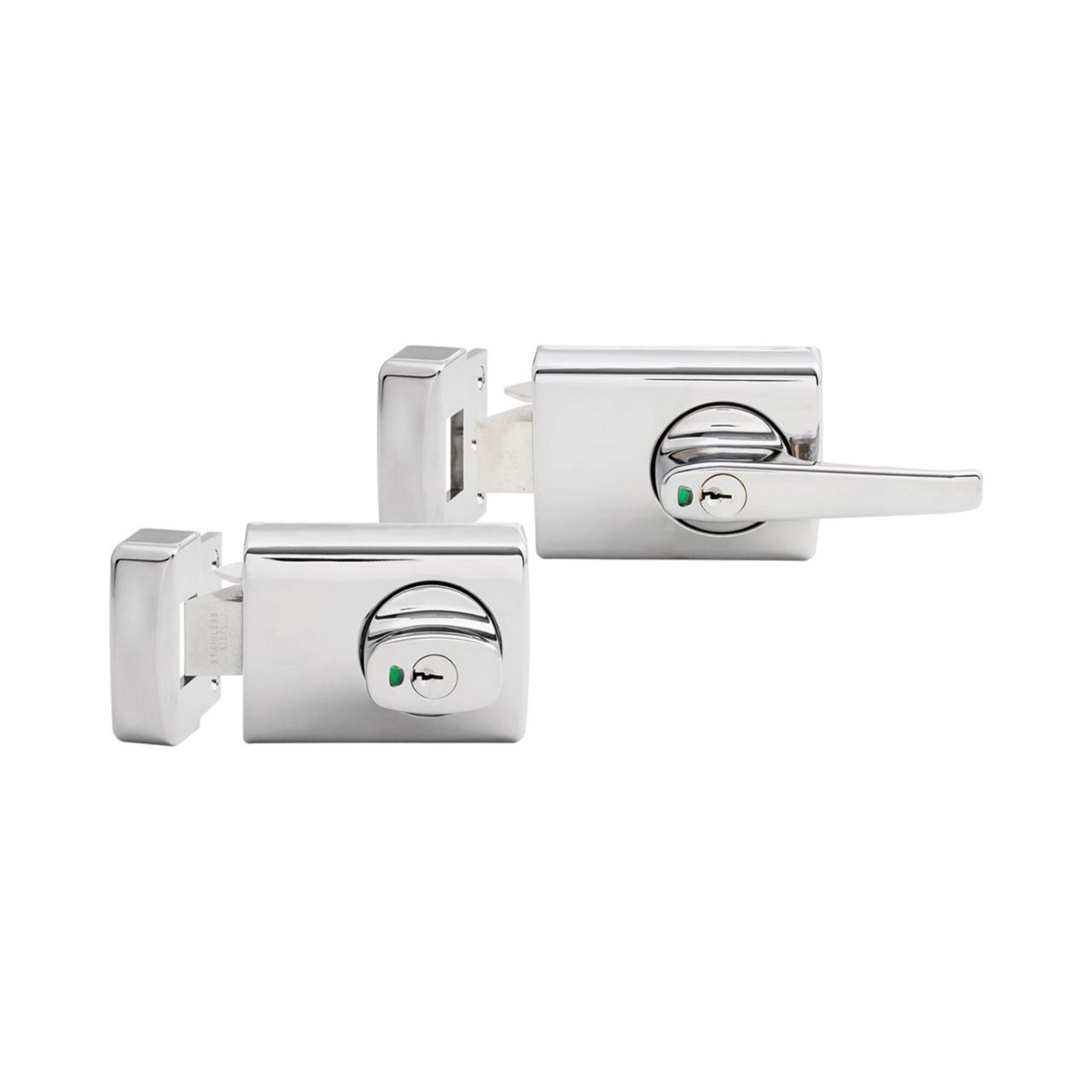

Lockwood 001 Rim Lock

This is NOT a cylinder - it’s a surface-mounted rim lock. Nuki cannot attach to this.

  • Most common residential lock in Australia (~60%)
  • Surface-mounted on inside of door
  • Has a snib (small twist), not a thumbturn
  • Solution: Replace with euro cylinder mortise lock, OR use alternative smart lock

Nuki Installation - How It Works

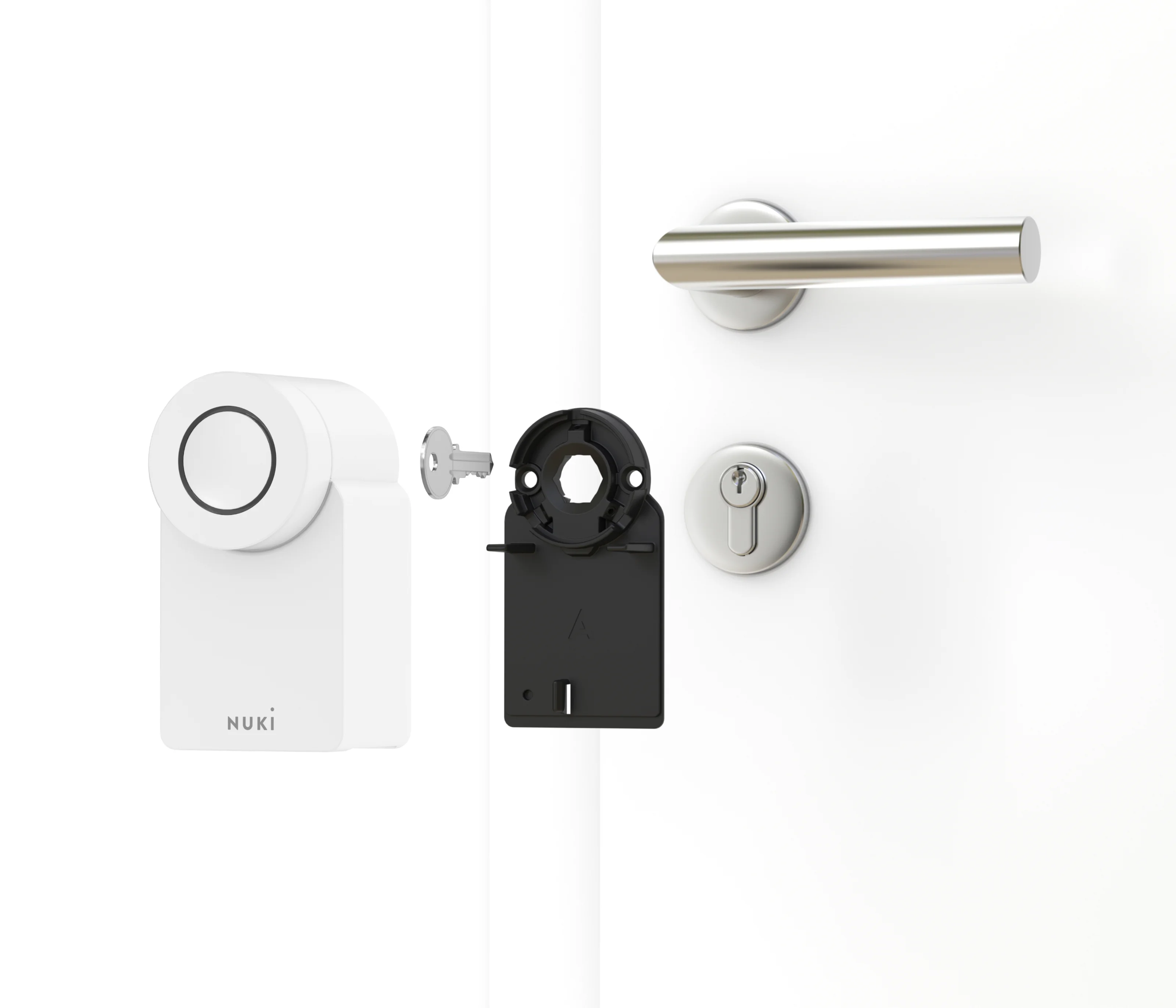

Exploded View (What Goes Where)

Nuki Installation Exploded

Shows:

  • Motor unit (the main Nuki body)
  • Mounting plate (attaches to door)
  • Adapter (connects to your cylinder)

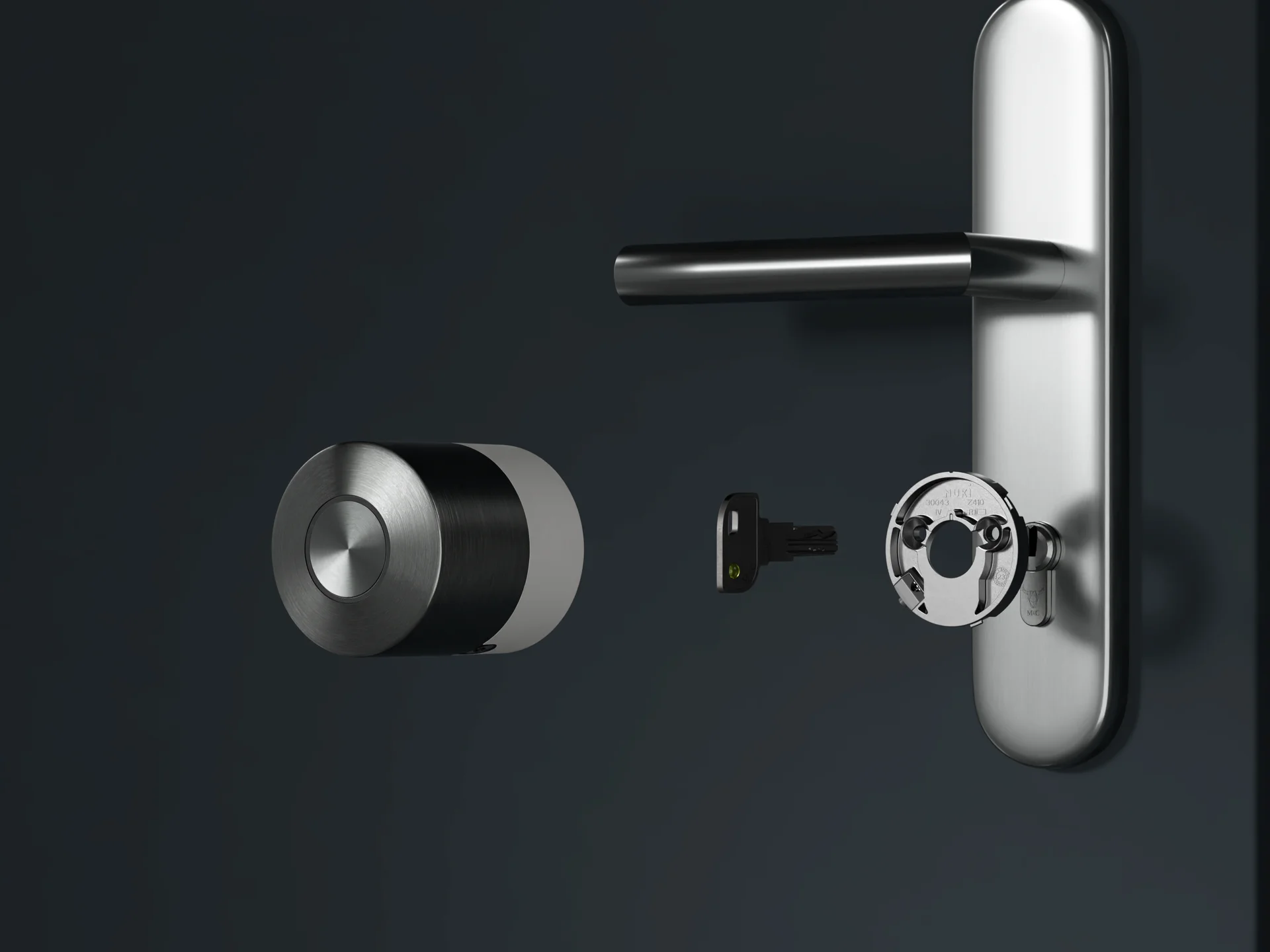

Pro Model Explosion

Nuki Pro Explosion

Shows how the components fit together.

Before & After

BeforeAfter

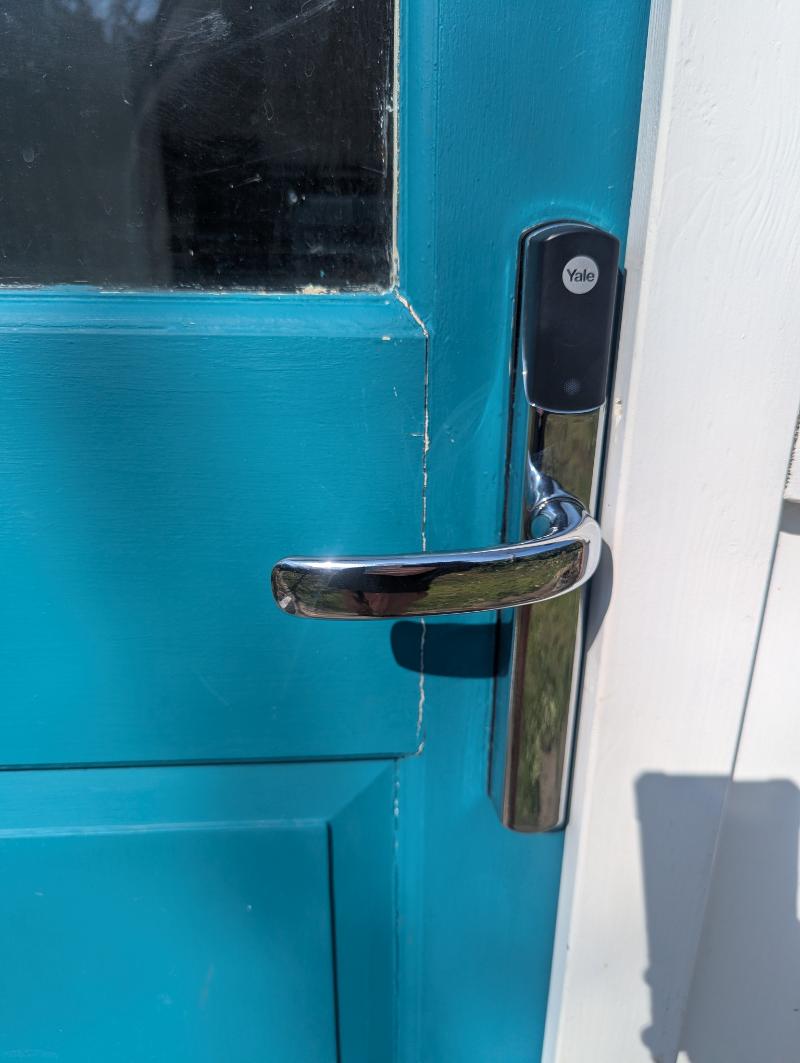

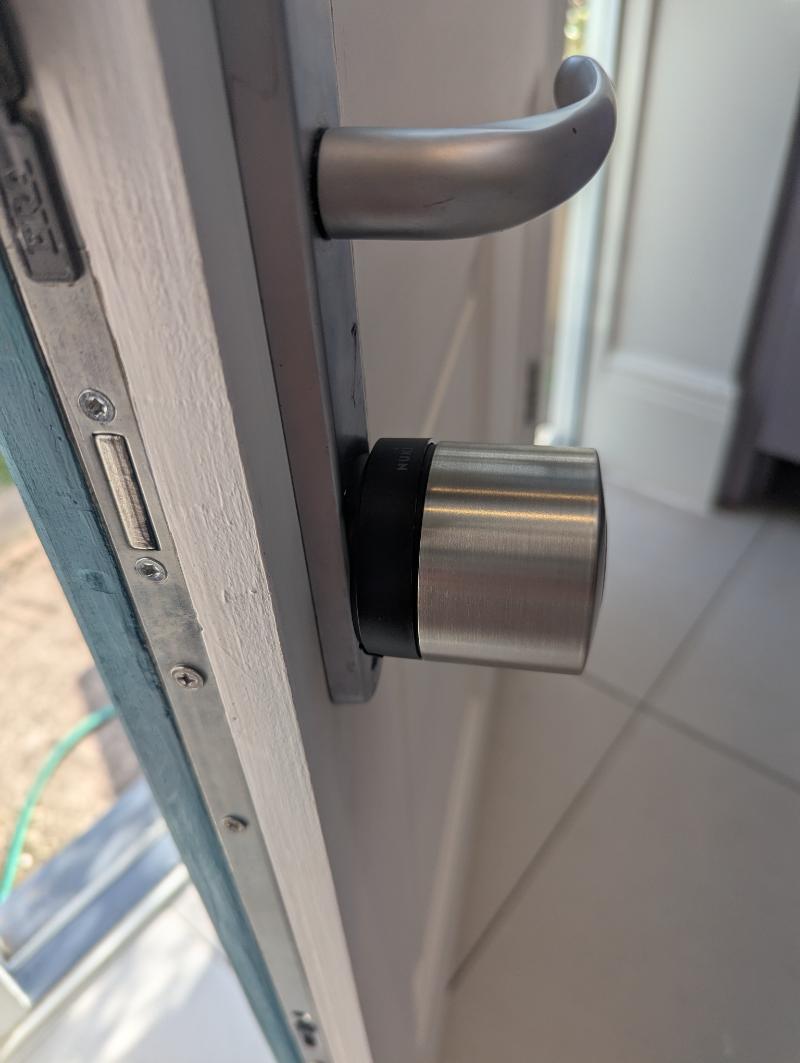

Before - Yale lockAfter - Nuki mounted
Existing euro cylinder with keyNuki Smart Lock mounted over cylinder

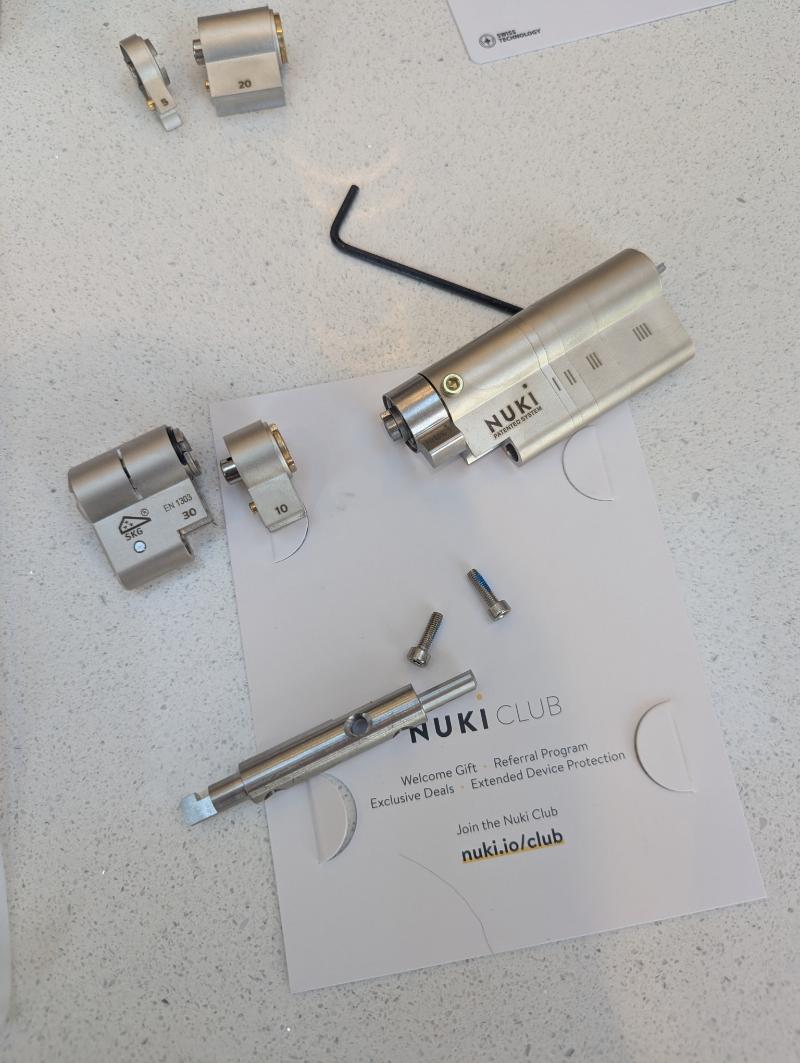

Cylinder Assembly

Cylinder Assembly

Shows how the cylinder and Nuki connect.

What’s in the Box

Unboxed Components

All the pieces you get with Nuki Ultra.

Compatibility Diagrams

What You Need to Check

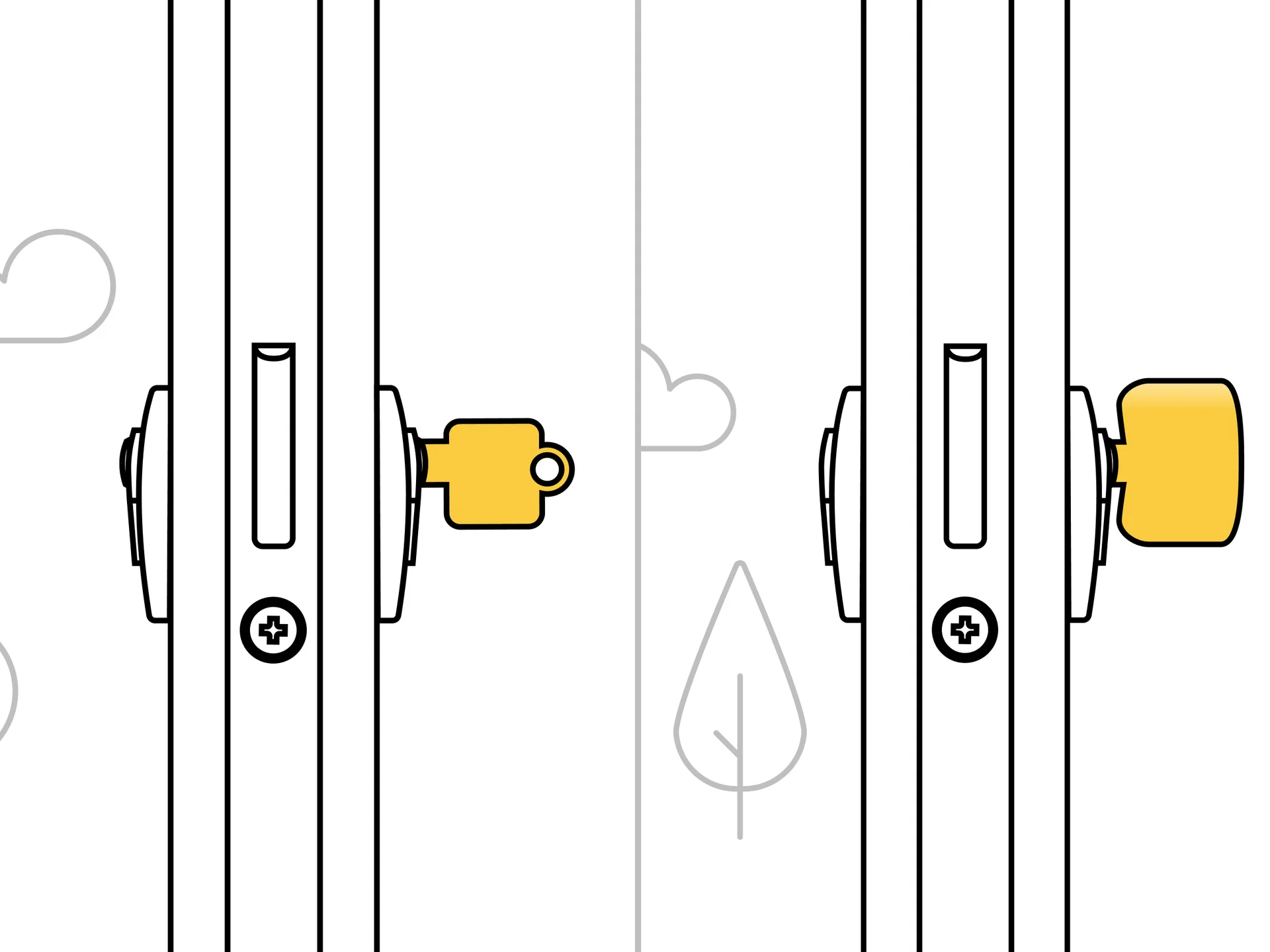

Compatibility Requirements

The key measurements to verify before buying.

Cylinder Types

Cylinder Types

This is the important one - shows different cylinder types:

  • Euro cylinder (drop shape) ✅
  • Knob cylinder ✅ (with adapter)
  • Round cylinder ⚠️ (check fit)

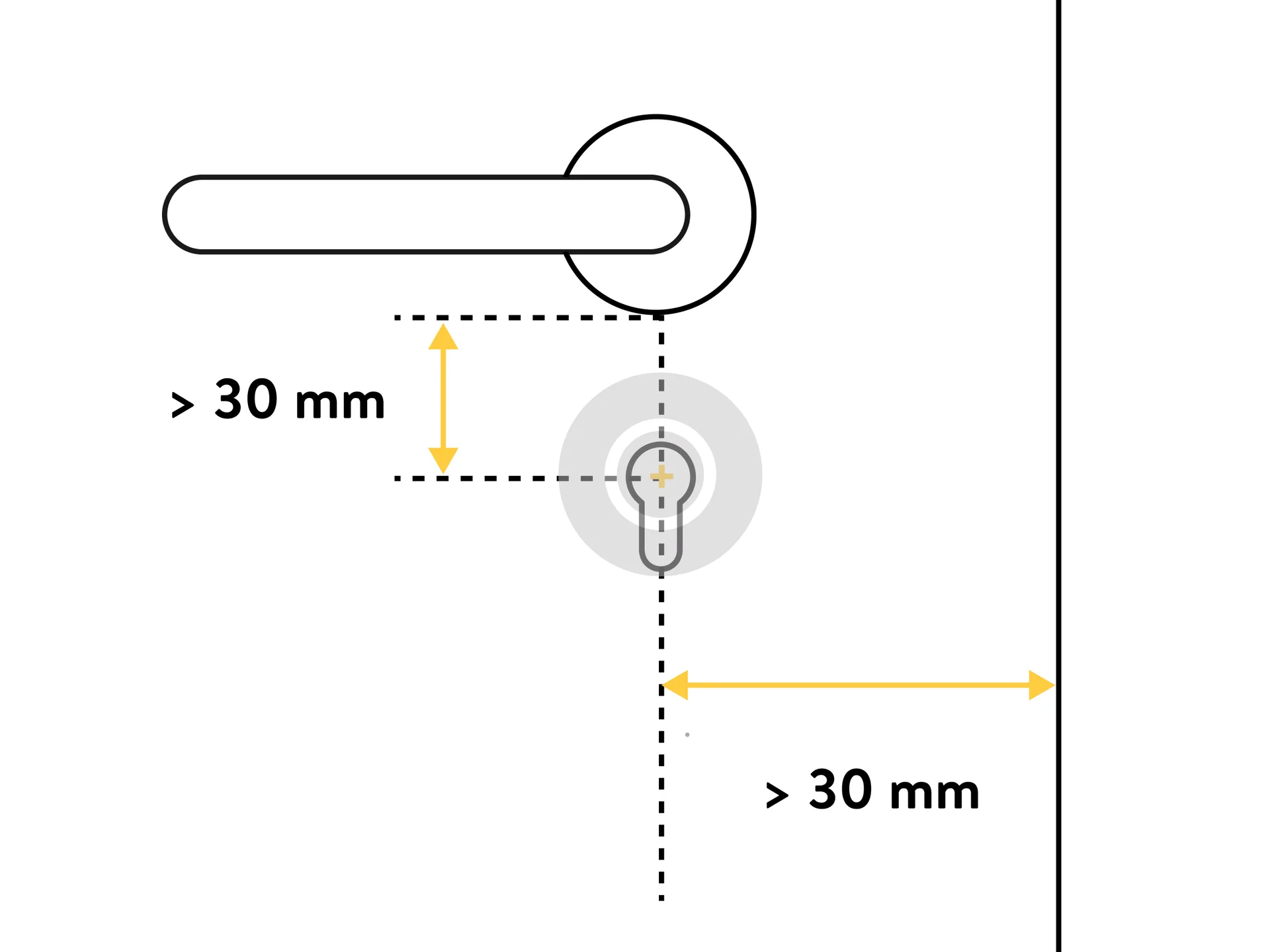

Door Measurements

Inward OpeningOutward Opening
InwardsOutwards
Min clearances for doors opening inwardMin clearances for doors opening outward

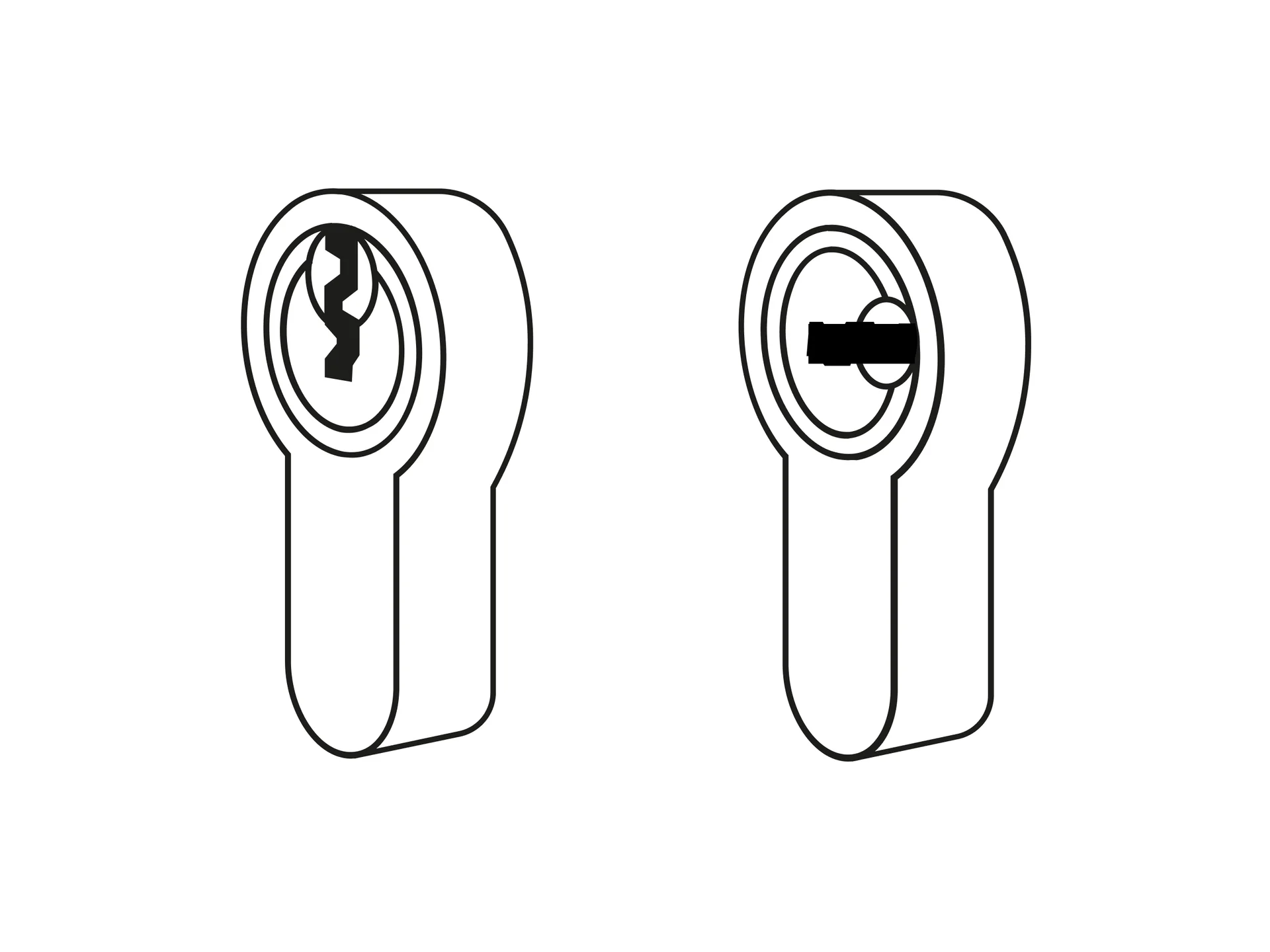

Key Orientation

Key Orientation

How your key should sit when the door is locked/unlocked.

Adapters Visual Reference

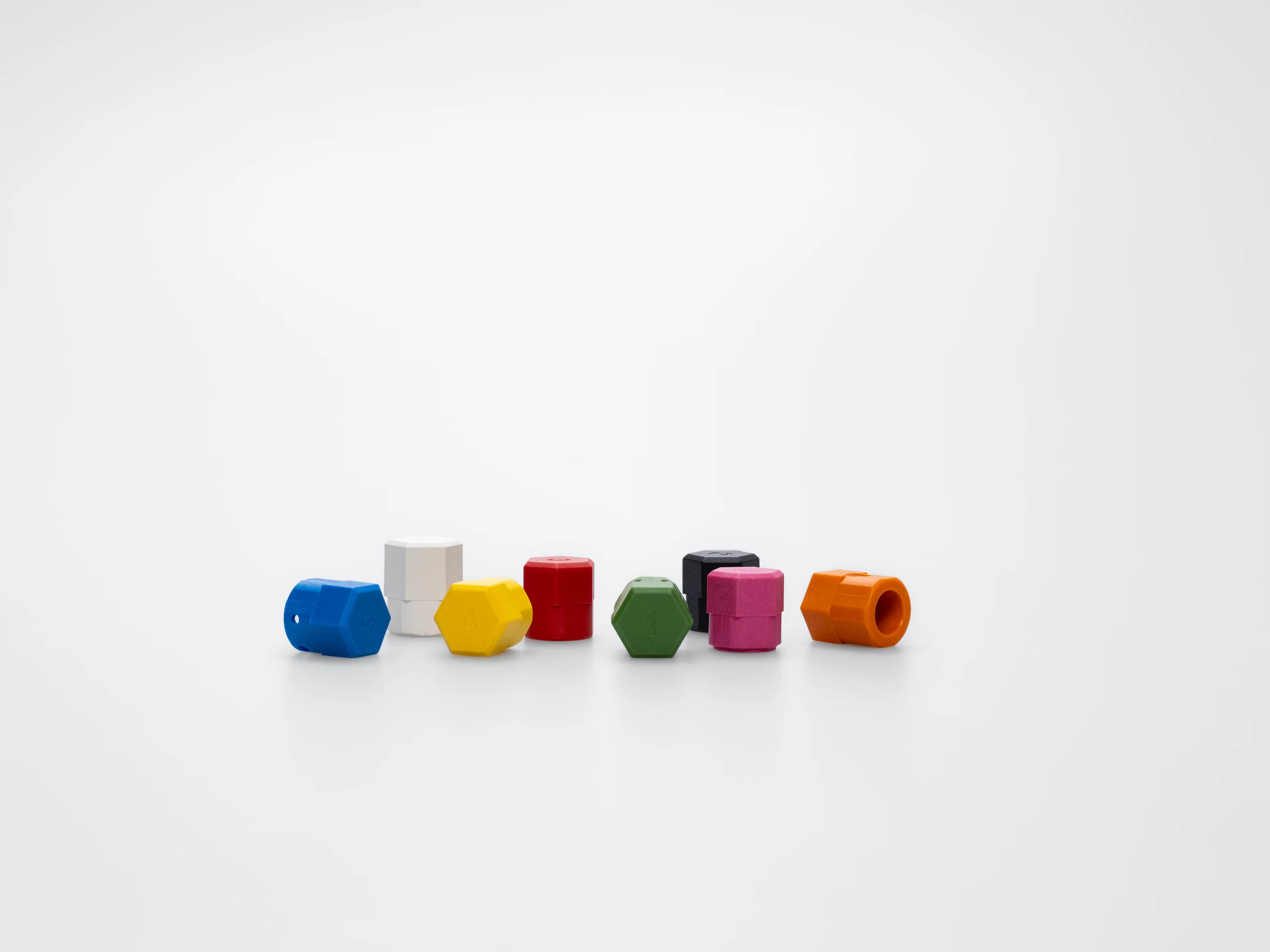

All 8 Knob Adapters

All Knob Adapters

The color-coded adapters for European cylinders. Match your cylinder brand to the adapter color.

See ../images/ for individual adapter photos.

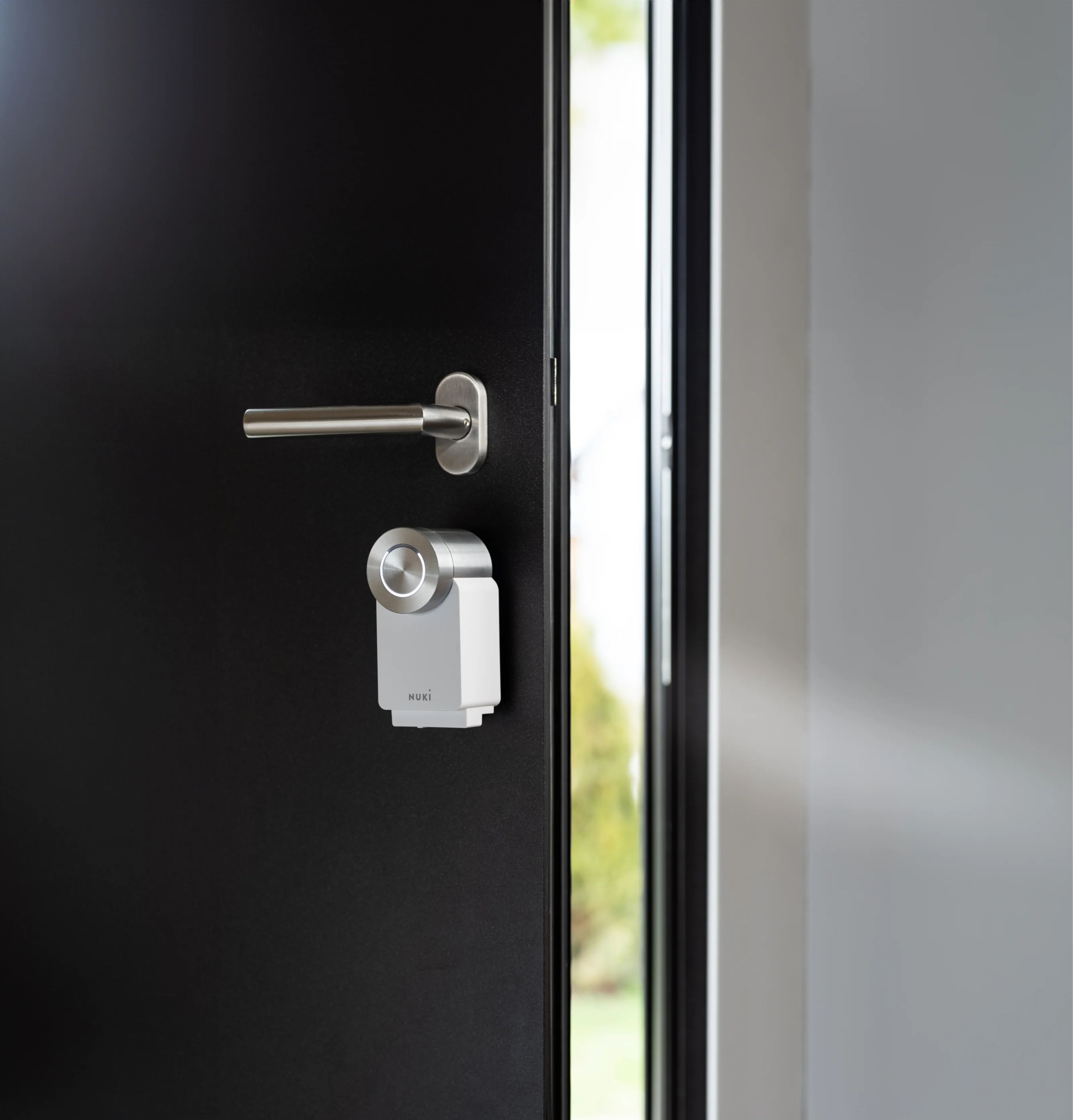

Smart Lock on Door

Smart Lock Pro on Door

What it looks like installed - clean, minimal, sits over your existing door hardware.

Image Provenance (Sources)

Official Nuki Images (media.crystallize.com)

FileSource URLLicense
nuki-installation-exploded.webphttps://media.crystallize.com/nuki-production/24/6/18/13/@3200/nuki-smart-lock_installation.webpNuki - Editorial use
nuki-pro-explosion.webphttps://media.crystallize.com/nuki-production/25/12/10/2/@1920/20250128_pro-explosion-animation_still-001-4-3-1.webpNuki - Editorial use
knob-adapters-all.webphttps://media.crystallize.com/nuki-production/24/12/2/143/@3200/knob-adapters.webpNuki - Editorial use
cylinder-types.webphttps://media.crystallize.com/nuki-production/25/11/4/17/@1920/compatibility_nuki_smartlock_go_cylinder_types.webpNuki - Editorial use
compatibility-requirements.webphttps://media.crystallize.com/nuki-production/25/11/4/16/@1920/compatibility_nuki_smartlock_go_requirements.webpNuki - Editorial use
dimensions-inwards.webphttps://media.crystallize.com/nuki-production/25/11/4/10/@1920/compatibility_nuki_smartlock_dimensions_inwards.webpNuki - Editorial use
dimensions-outwards.webphttps://media.crystallize.com/nuki-production/25/11/4/10/@1920/compatibility_nuki_smartlock_dimensions_outwards.webpNuki - Editorial use
key-orientation.webphttps://media.crystallize.com/nuki-production/25/11/4/8/@1920/compatibility_nuki_smartlock_key_orientation.webpNuki - Editorial use
compatibility-hero.webphttps://media.crystallize.com/nuki-production/25/11/4/15/@1920/compatibility_nuki_smartlock_go_hero.webpNuki - Editorial use
nuki-us-smart-lock.pnghttps://media.crystallize.com/nuki-production/25/5/21/10/nuki_smart-lock_us.pngNuki - Editorial use
smart-lock-on-door.webphttps://media.crystallize.com/nuki-production/24/6/20/5/@3200/smart-lock-pro-black-door-open.webpNuki - Editorial use

Third-Party Review Images (Yorkshire Wonders)

FileSource URLLicense
installation-before-yale.jpghttps://yorkshirewonders.co.uk/wp-content/uploads/2025/03/Nuki-Smart-Lock-Ultra-Review-5.jpgReview - Fair use
installation-after-mounted.jpghttps://yorkshirewonders.co.uk/wp-content/uploads/2025/03/Nuki-Smart-Lock-Ultra-Review-36.jpgReview - Fair use
cylinder-assembly.jpghttps://yorkshirewonders.co.uk/wp-content/uploads/2025/03/Nuki-Smart-Lock-Ultra-Review-28.jpgReview - Fair use
unboxed-components.jpghttps://yorkshirewonders.co.uk/wp-content/uploads/2025/03/Nuki-Smart-Lock-Ultra-Review-13.jpgReview - Fair use

Source: Yorkshire Wonders Nuki Smart Lock Ultra Review

Manufacturer Images (ASSA ABLOY / Lockwood)

FileSource URLLicense
lockwood-001-rimlock.jpghttps://gw-assets.assaabloy.com/is/image/assaabloy/268dd-130304035740603ASSA ABLOY - Product image

Source: Lockwood 001 Double Cylinder Deadlatch
